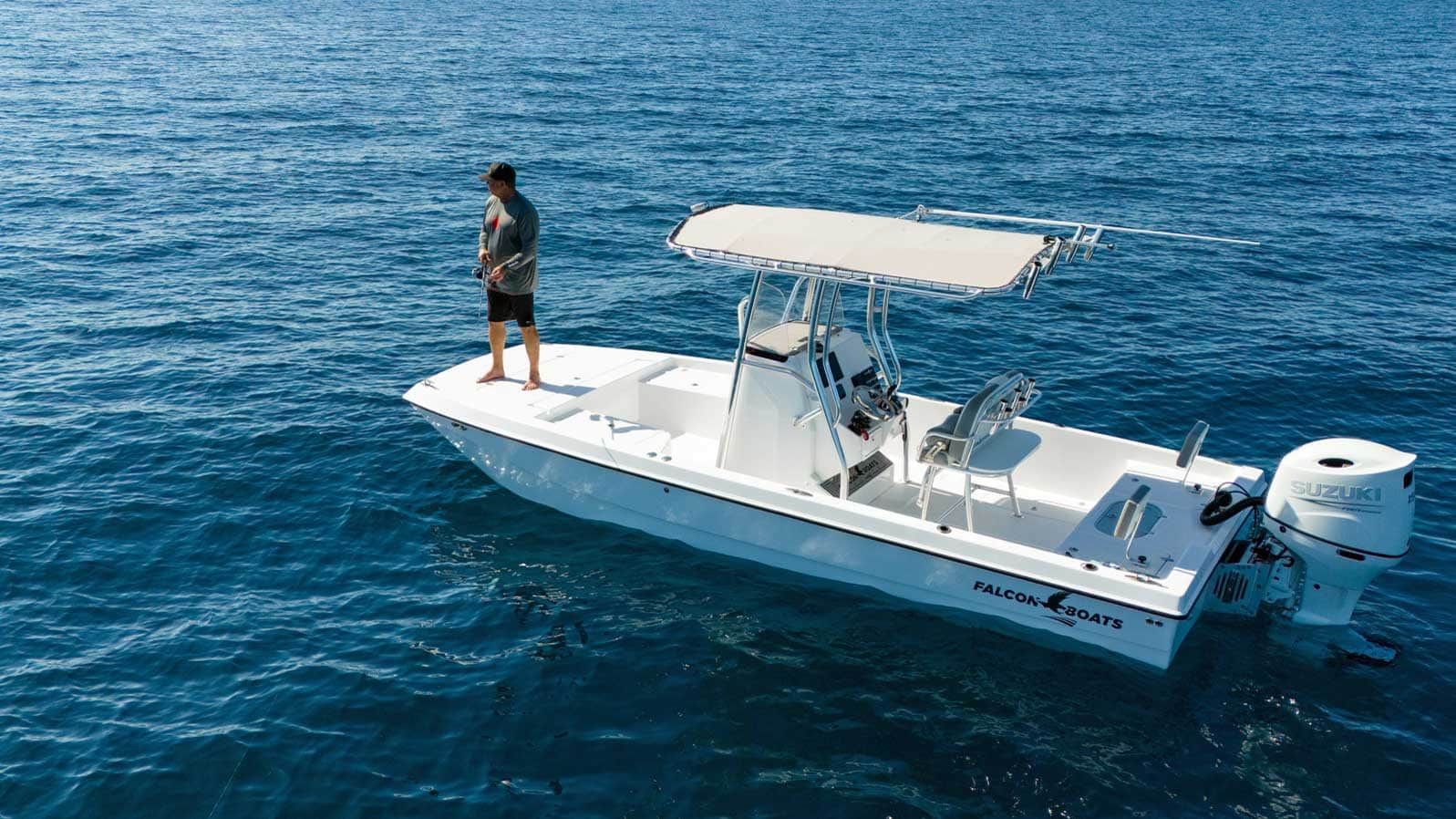

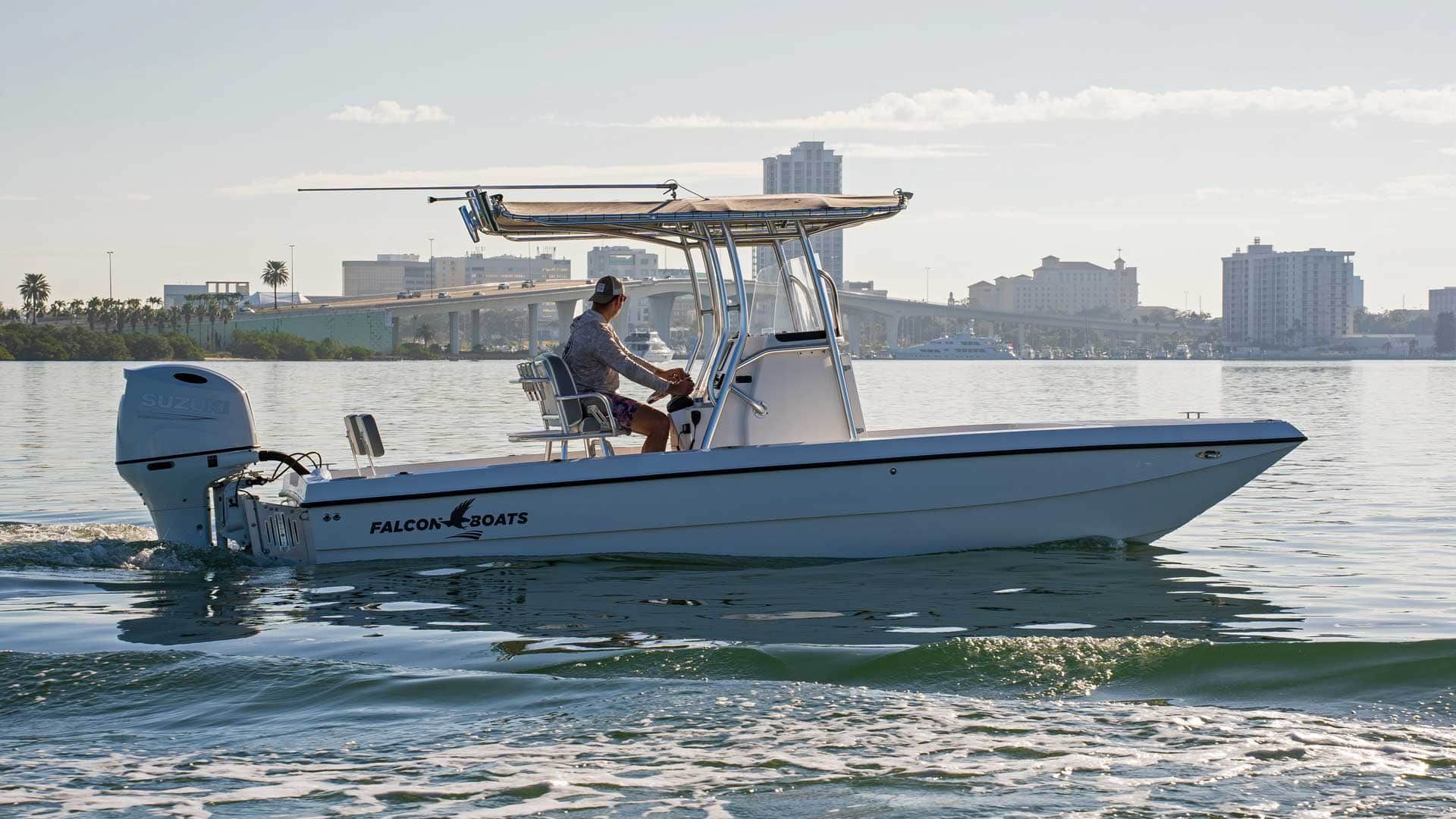

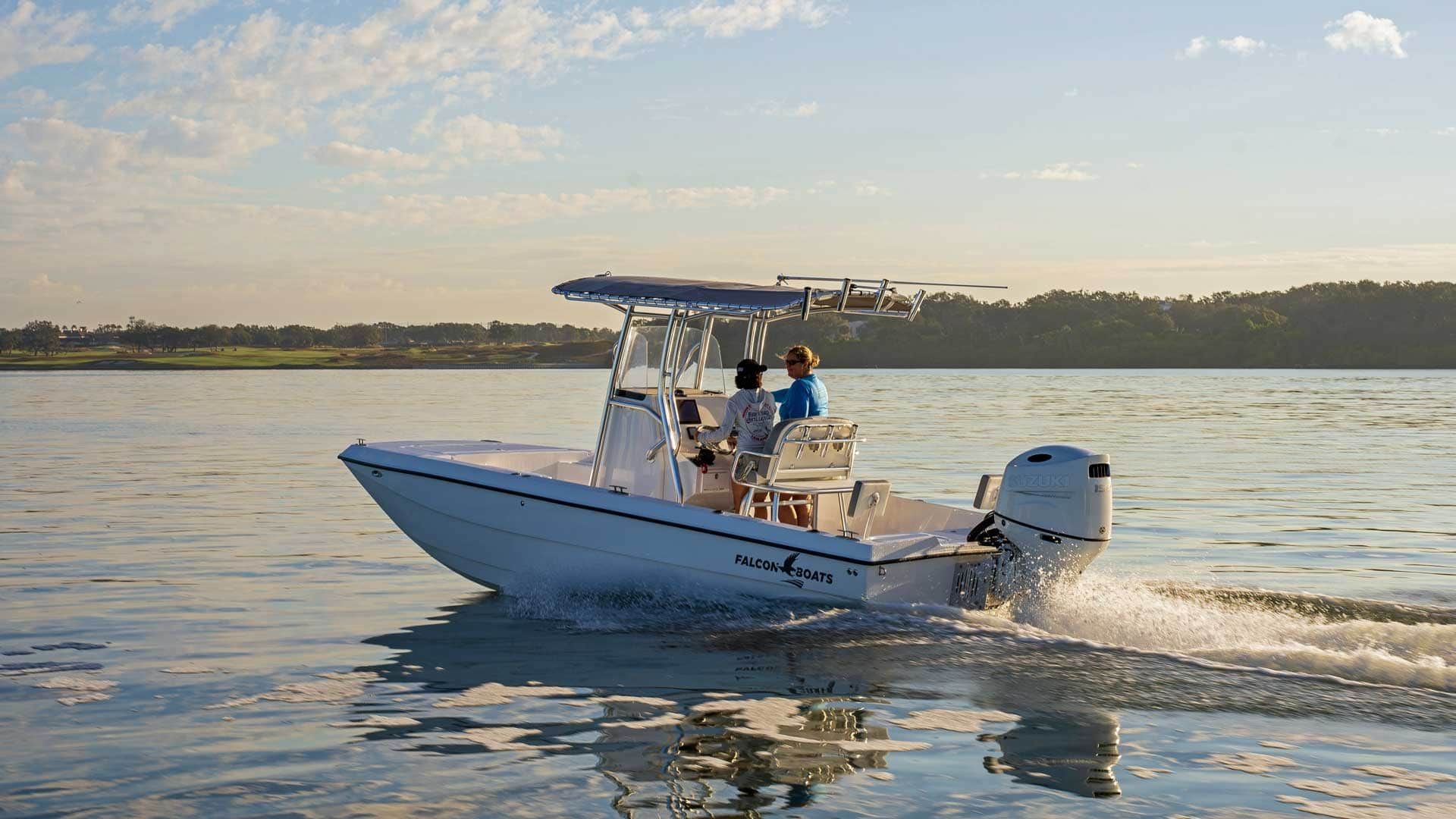

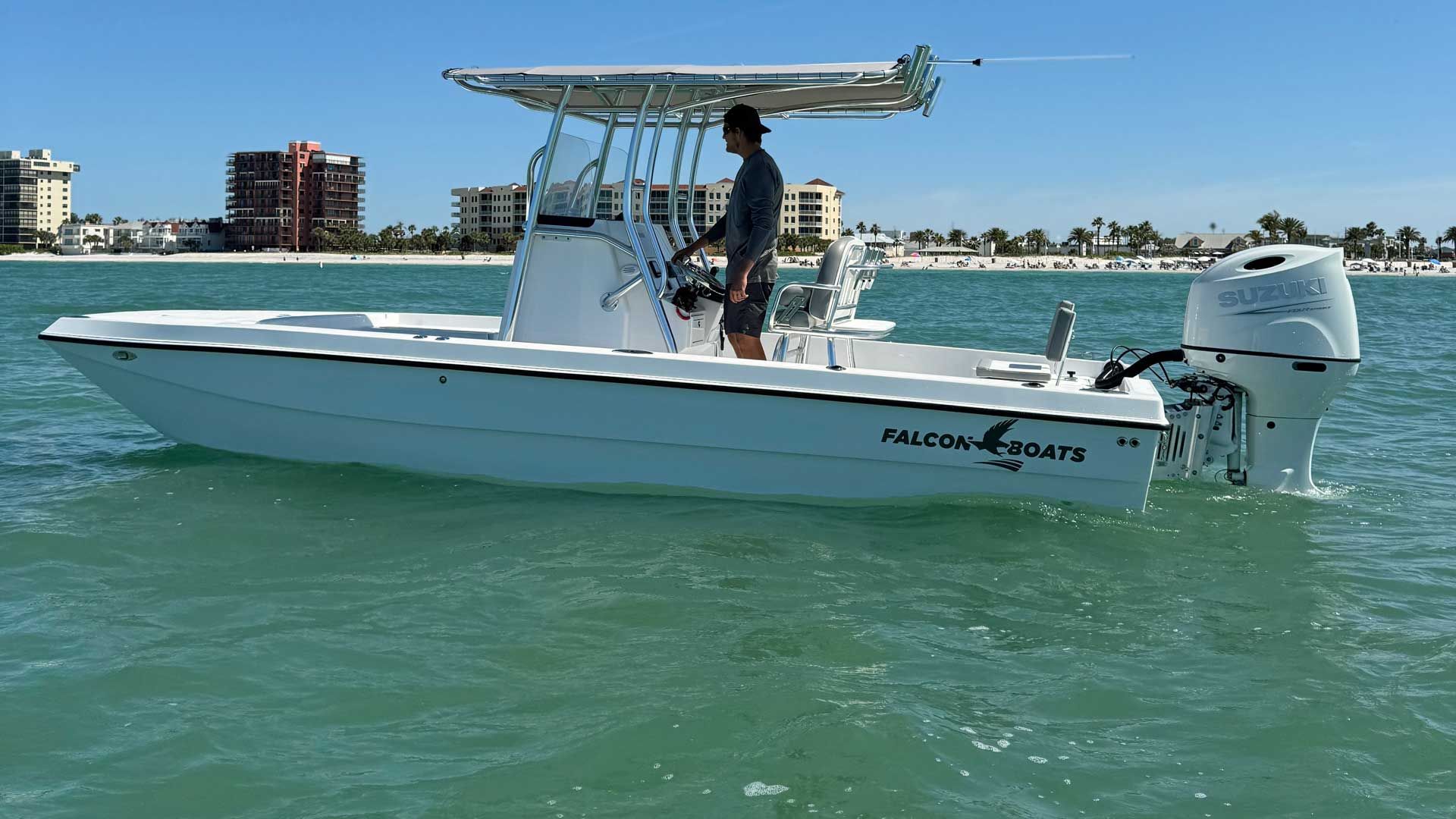

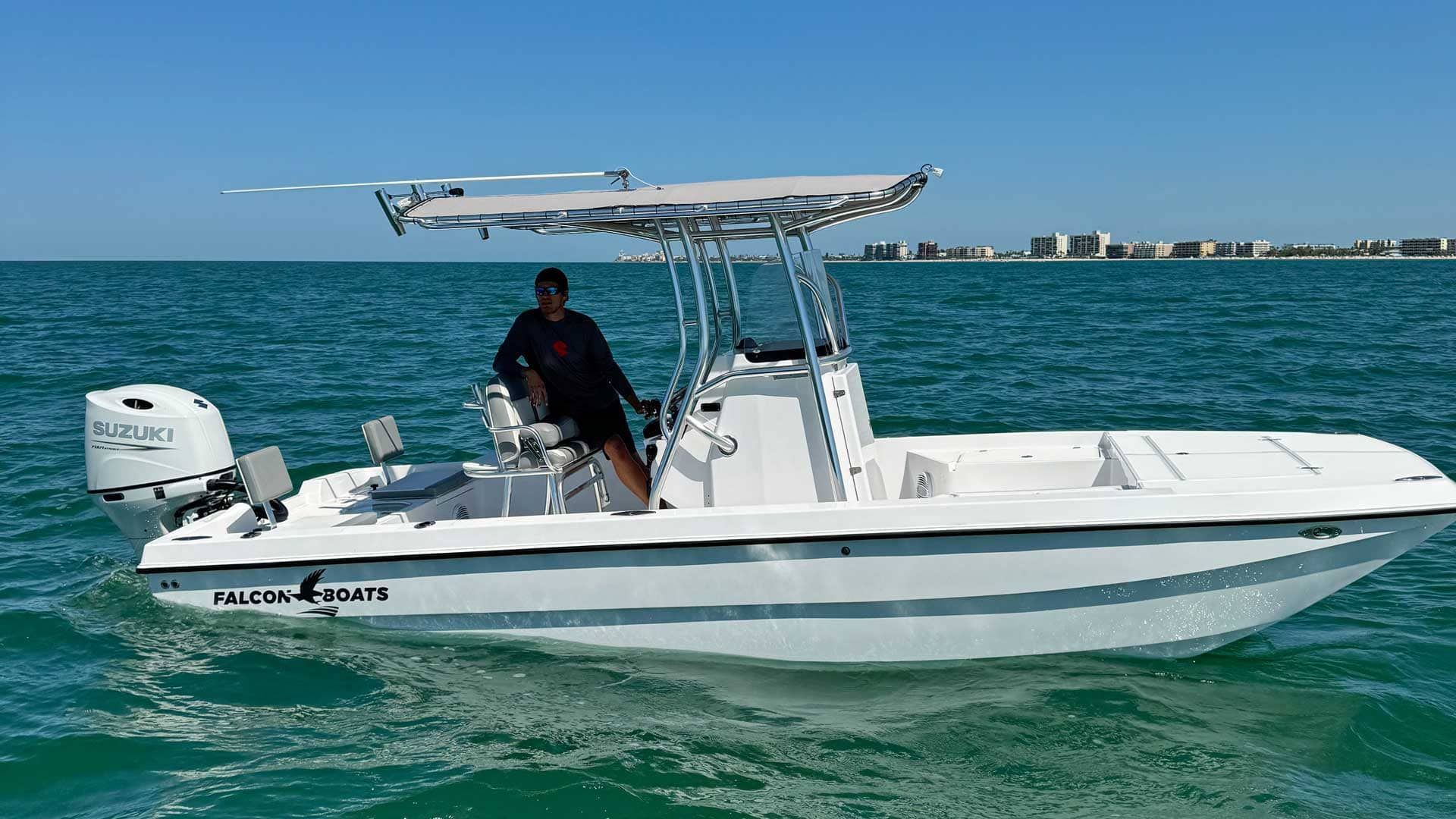

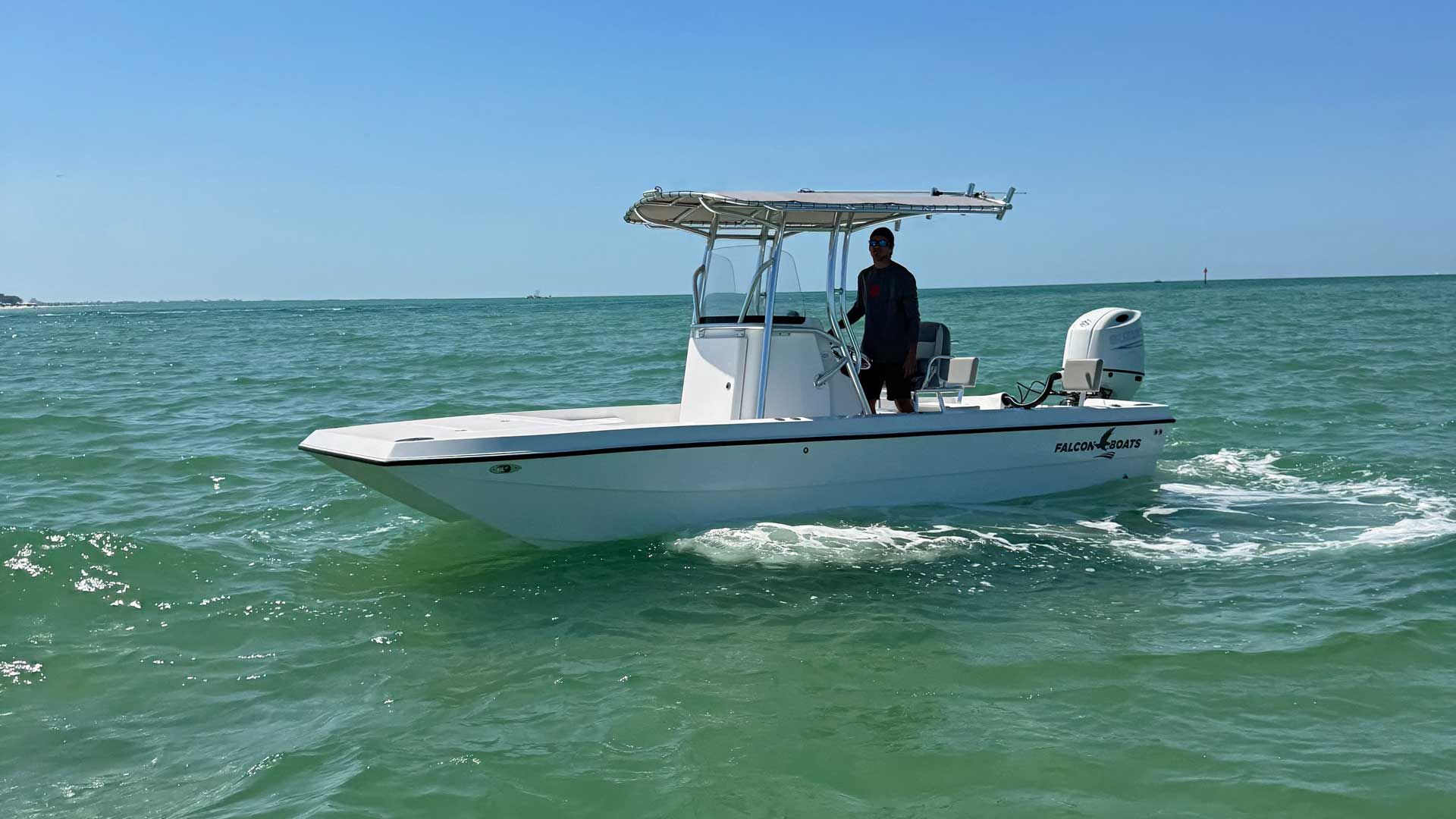

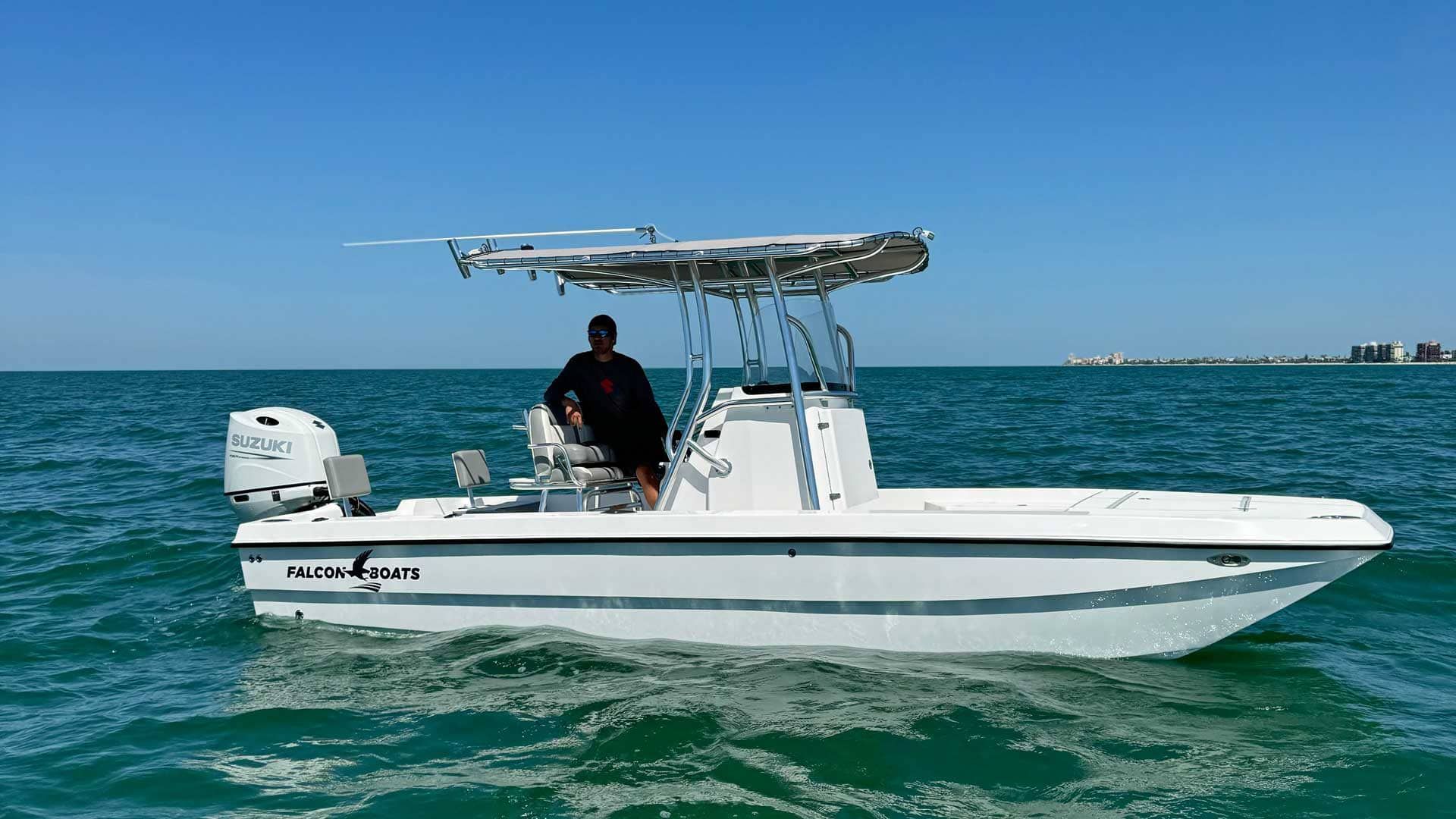

Falcon BAY22

Equipped for the inshore adventure.

The Falcon Bay pedigree is a proven hull that was modified to perform with a single engine. In early 2022 Falcon updated the deck, raising it and adding self-bailing capability and additional storage accessibility with integral nonskid protection. With the Falcon Bay’s shallow draft, performance, layout and stability, it is the perfect in- and near-shore fishing machine. The Bay can provide you with more days on the water because of the way it handles rough conditions, and even though you may not plan to be out on bad days, it will not beat you up if the weather does turn rough and you have to get home.

The logo for falcon boats has a bird on it

22' 4"

LOA

BEAM

DRAFT

MAX HP

Full Model Specifications

LOA 22' 4"
Beam 8' 6"
Draft 9" - 12"
Fuel capacity 74 gal.
Max horsepower 250
Gunnel height 18"
Dry weight 2200 lbs.
Bridge clearance ???
Fishbox 2x 130 qt.
Transom livewell 28 gal.

Full Model Features

Click on tabs for more content.

POWER

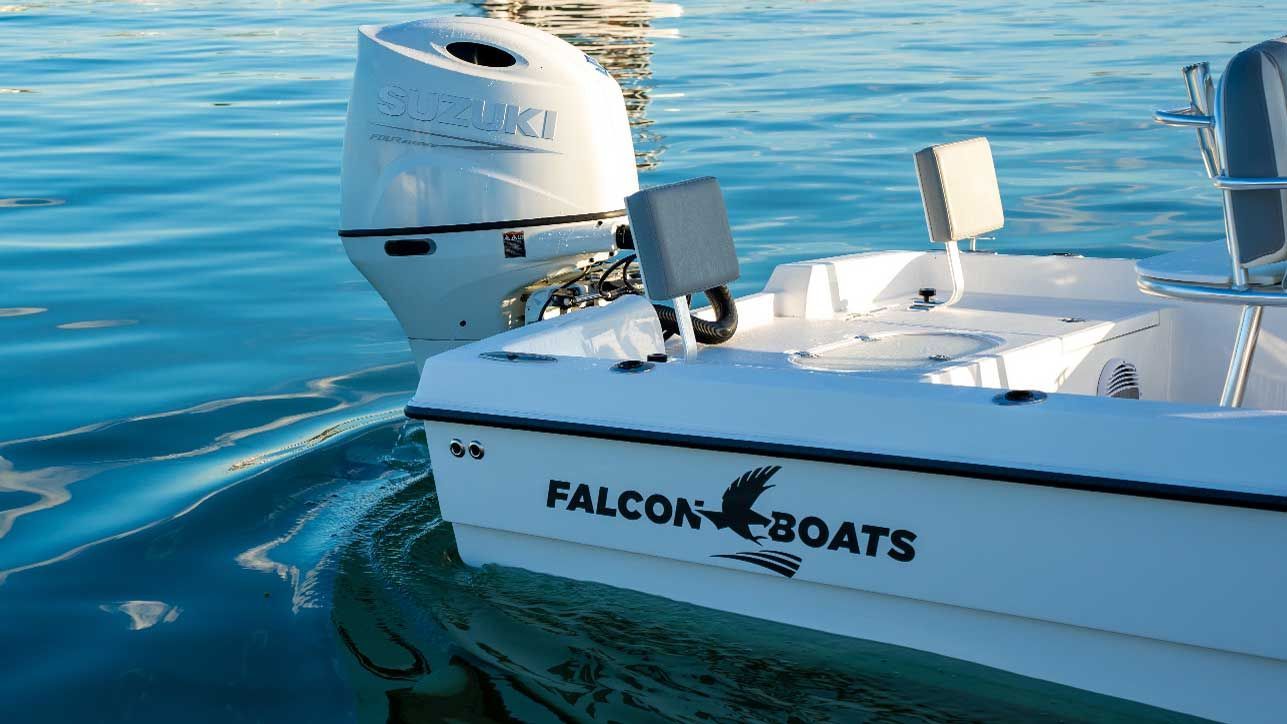

SINGLE 200 SUZUKI 4S BLACK DIGITAL

‍

FUEL SYSTEM

37 GALLON EPA/ABYC/NMMA/ISO CERTIFIED TANKS (2)
RACOR FUEL FILTERS (2)

‍

RIGGING

CLEAR ACRYLIC LIVE WELL LIDS (1)
750 GPH LIVE WELL PUMP
1100 GPH BILGE PUMPS W/ AUTOMATIC FLOAT SWITCHES (2)
FISHBOX MACERATORS (2)
RAW WATER WASH DOWN
8” SS PULL-UP CLEATS – BOW (2), MIDSHIP (2), STERN (2)
SS BOW EYE
SS STERN EYE (2)
SS CUP HOLDERS – DASH (2)
SS ROD HOLDERS – BOW 15 DEG (2), MIDSHIP 15 DEG (2), STERN 30 DEG (2)
GEMLUX FLUSH MOUNT FRICTION HINGES
GEMLUX HATCH LATCHES
MARINE GRADE RUB RAIL
CONSOLE FORWARD DOOR
BILGE LINER REMOVABLE STORAGE BOXES

‍

STEREO

‍FUSION RECIEVER
8” FUSION SPEAKERS – BOW (2), STERN (2)

– OR –

WET SOUNDS RECEIVER
8"WET SOUNDS SPEAKERS – BOW (2), STERN (2)

‍

ELECTRONICS

GARMIN
12" Garmin 1243XSV
GARMIN VHF w/GPS
GARMIN 3:1 TRANSOM MOUNTED TRANSDUCER

– OR –

SIMRAD
12" SIMRAD NSX
I-COMM WHF M330G w/GPS
SIMRAD 3:1 TRANSOM MOUNTED TRANSDUCER

‍‍HELM STATION

3/8” ACRYLIC WINDSHIELD
CONSOLE W/ HINGED DASH & FORWARD ACCESS DOOR
FLUSH MOUNTED COMPASS
SS STEERING WHEEL W/ POWER KNOB
HYDRAULIC STEERING W/ TILT HELM
CONSOLE INTERIOR ELECTRONICS CLOSE OUT WALL
ELECTRONIC HORN
12V & USB CHARGING PORTS
LOCKING GLOVE BOX
FALCON BOATS ACRYLIC 18 SWITCH PANEL
GROUP 24 CRANKING BATTERY (1)
GROUP 24 DEEP CYCLE BATTERY (1)
72 QT COOLER w/SLIDING TRAY
ANODIZED ALUMINUM LEANING POST W/ FOLDABLE FOOTREST, SS ROD HOLDERS (3), SS CUP HOLDERS (2), STARBOARD CUTTING STATION, GRABRAIL, & FLIP DOWN SEATING
ANODIZED ALUMINUM CANVAS T TOP W/ ROD HOLDERS (4), VHF ANTENNA, & OUTRIGGER MOUNTS

‍

LIGHTING

LED SHARK EYE NAVIGATION LIGHTS
LED COCKPIT COURTESY LIGHTS (4)
LED LIVE WELL LIGHTS
CONSOLE INTERIOR LIGHT
ANCHOR LIGHT – T TOP
SPREADER LIGHTS FORE & AFT SEPARATELY CONTROLLED – T TOP
OVERHEAD LIGHT – TTOP

‍

TRANSOM

HYDRAULIC JACK PLATE
4 STEP REMOVABLE DIVE LADDER

Videos

Excitement, Performance, & Comfort Come Standard.

From years of experience in repairing, running, and building other brands of boats, the Falcon team knew they could develop a superior product. We have developed layouts, features, and improved manufacturing technology that result in a build quality that sets Falcon Boats apart. People who really use their boats will appreciate the difference!

Experience the Difference

See why Falcon's innovative design and superior build quality sets us apart from other manufacturers.
